OAuth2 for SMTP and IMAP

Modern email providers such as Google and Microsoft require OAuth2 authentication for SMTP and IMAP access. This tutorial explains how to configure OAuth2 for sending emails (SMTP) and for the Event Manager's IMAP action (fetching email attachments).

SFTPGo supports two OAuth2 providers:

Provider	SMTP scopes	IMAP scopes
Google	https://mail.google.com/	https://mail.google.com/
Microsoft	offline_access, https://outlook.office.com/SMTP.Send	offline_access, https://outlook.office.com/IMAP.AccessAsUser.All

For Google, https://mail.google.com/ grants full access to Gmail (both SMTP and IMAP), so the same scope works for both. For Microsoft, SFTPGo automatically requests the appropriate scope based on the context: SMTP.Send for sending emails and IMAP.AccessAsUser.All for IMAP access.

The offline_access scope (Microsoft) tells the provider to issue a refresh token alongside the access token. Access tokens are short-lived (typically 1 hour); the refresh token allows SFTPGo to obtain new access tokens without requiring the user to re-authorize. Google's https://mail.google.com/ scope implicitly supports refresh tokens when requested with access_type=offline (which SFTPGo does automatically).

The scopes are managed automatically by SFTPGo — you only need to provide the Client ID, Client Secret, and authorize the connection.

Part 1: SMTP with OAuth2

Google (Gmail)

Step 1: Create OAuth2 Credentials in Google Cloud Console

1. Go to the Google Cloud Console.
2. Create a new project (or select an existing one).
3. Navigate to APIs & Services > OAuth consent screen.
4. Configure the consent screen: - User Type: Internal (for Google Workspace) or External (for personal accounts). - App name, user support email, and developer contact email are required. - For external apps, add the email address you will use to send emails as a test user (until the app is published).
5. Navigate to APIs & Services > Credentials.
6. Click Create Credentials > OAuth client ID.
7. Application type: Web application.
8. Add an Authorized redirect URI: https://<your-sftpgo-url>/web/admin/oauth2/redirect. Replace <your-sftpgo-url> with your actual SFTPGo WebAdmin URL. If SFTPGo runs on http://localhost:8080, use http://localhost:8080/web/admin/oauth2/redirect.
9. Click Create and note the Client ID and Client Secret.

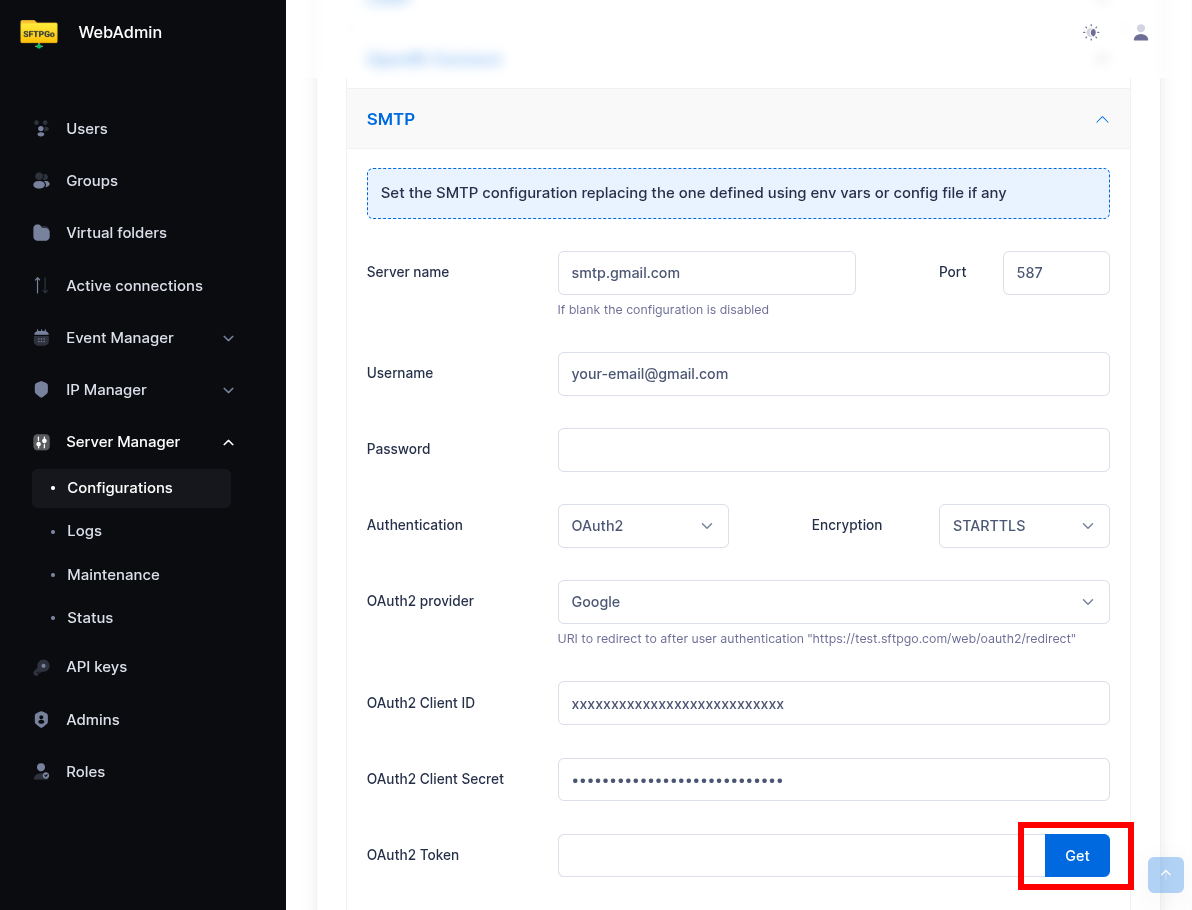

Step 2: Configure SMTP in SFTPGo

In the WebAdmin, navigate to Server Manager > Configurations > SMTP.

Fill in the following:

Field	Value
Host	smtp.gmail.com
Port	587 (or 465 for implicit TLS)
Username	your-email@gmail.com
Encryption	STARTTLS (for port 587) or Implicit TLS (for port 465)
Auth type	OAuth2
Provider	Google
Client ID	The Client ID from step 1
Client Secret	The Client Secret from step 1

Step 3: Authorize the Connection

Click the Get button next to the OAuth2 Token field. SFTPGo will redirect you to Google's consent screen. Sign in with the email account you want to send from and grant the requested permissions.

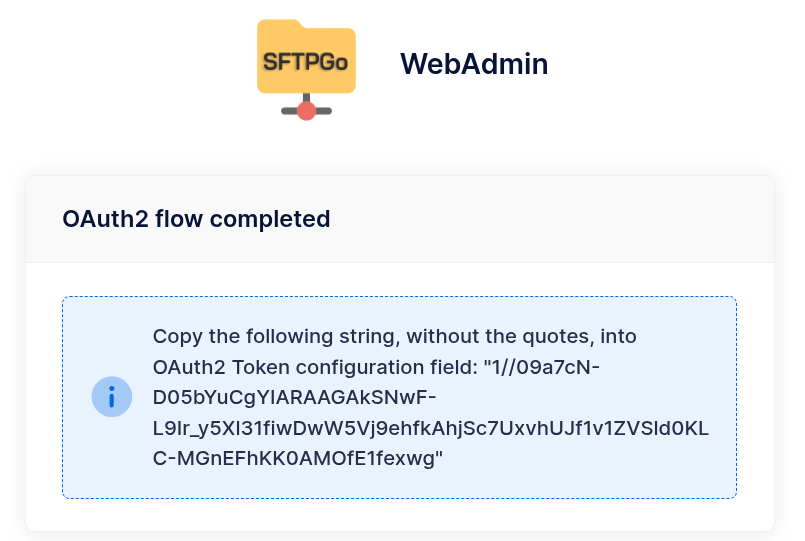

After authorization, SFTPGo displays a page with the refresh token. Copy the token string (without quotes) and paste it into the OAuth2 Token field.

Step 4: Save and Test

Click Submit to save the SMTP configuration. Use the Send test email feature to verify everything works.

Microsoft (Outlook / Office 365)

Step 1: Register an Application in Azure AD

1. Go to the Azure Portal and navigate to Microsoft Entra ID > App registrations.
2. Click New registration.
3. Name the application (e.g., SFTPGo).
4. Supported account types: choose based on your organization. For single-tenant setups, select Accounts in this organizational directory only.
5. Redirect URI: Platform Web, URI https://<your-sftpgo-url>/web/admin/oauth2/redirect.
6. Click Register.
7. Note the Application (client) ID and Directory (tenant) ID.

Step 2: Create a Client Secret

1. In the app registration, navigate to Certificates & secrets > Client secrets.
2. Click New client secret, add a description, and choose an expiration period.
3. Note the Value (this is your client secret — it is shown only once).

Step 3: Configure API Permissions

1. Navigate to API permissions.
2. Click Add a permission > Microsoft Graph > Delegated permissions.
3. Add: SMTP.Send, offline_access.
4. Click Grant admin consent (if you are an admin) or have an admin approve the permissions.

If you also plan to use the IMAP action with Microsoft, add IMAP.AccessAsUser.All to the same app registration now. This way you can reuse the same app for both SMTP and IMAP.

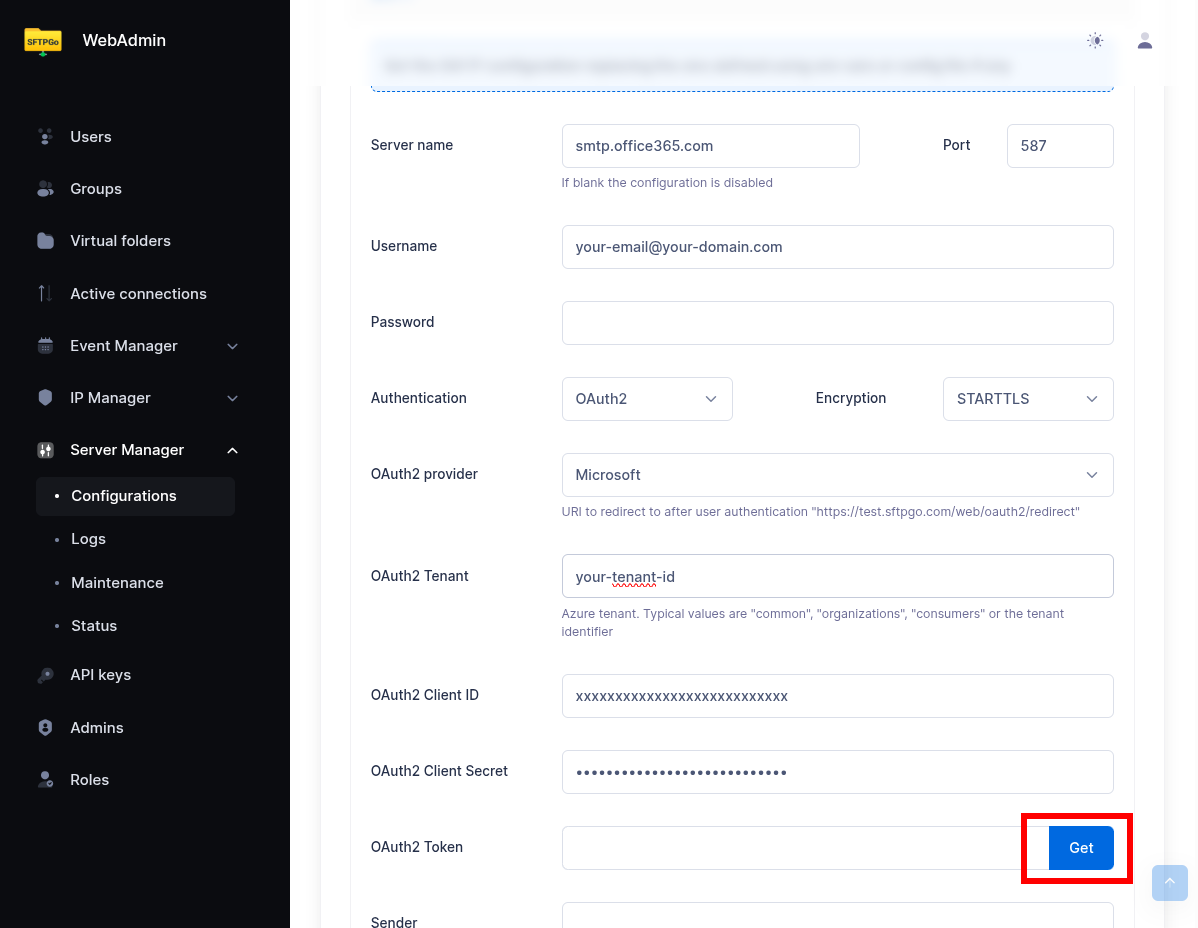

Step 4: Configure SMTP in SFTPGo

In the WebAdmin, navigate to Server Manager > Configurations > SMTP.

Field	Value
Host	smtp.office365.com
Port	587
Username	your-email@your-domain.com
Encryption	STARTTLS
Auth type	OAuth2
Provider	Microsoft
Tenant	Your Directory (tenant) ID (leave empty for common)
Client ID	The Application (client) ID
Client Secret	The client secret value

Step 5: Authorize and Test

Click the Get button next to the OAuth2 Token field. Sign in with the Microsoft account and grant consent. Copy the refresh token from the result page into the OAuth2 Token field. Click Submit and send a test email.

If you are using a single-tenant configuration, enter the tenant ID in the Tenant field. For multi-tenant setups, leave it empty (SFTPGo will use common).

Part 2: IMAP with OAuth2

The Event Manager's IMAP action supports OAuth2 authentication using the same provider configuration. This is essential for providers that have deprecated password-based IMAP access.

Configuration

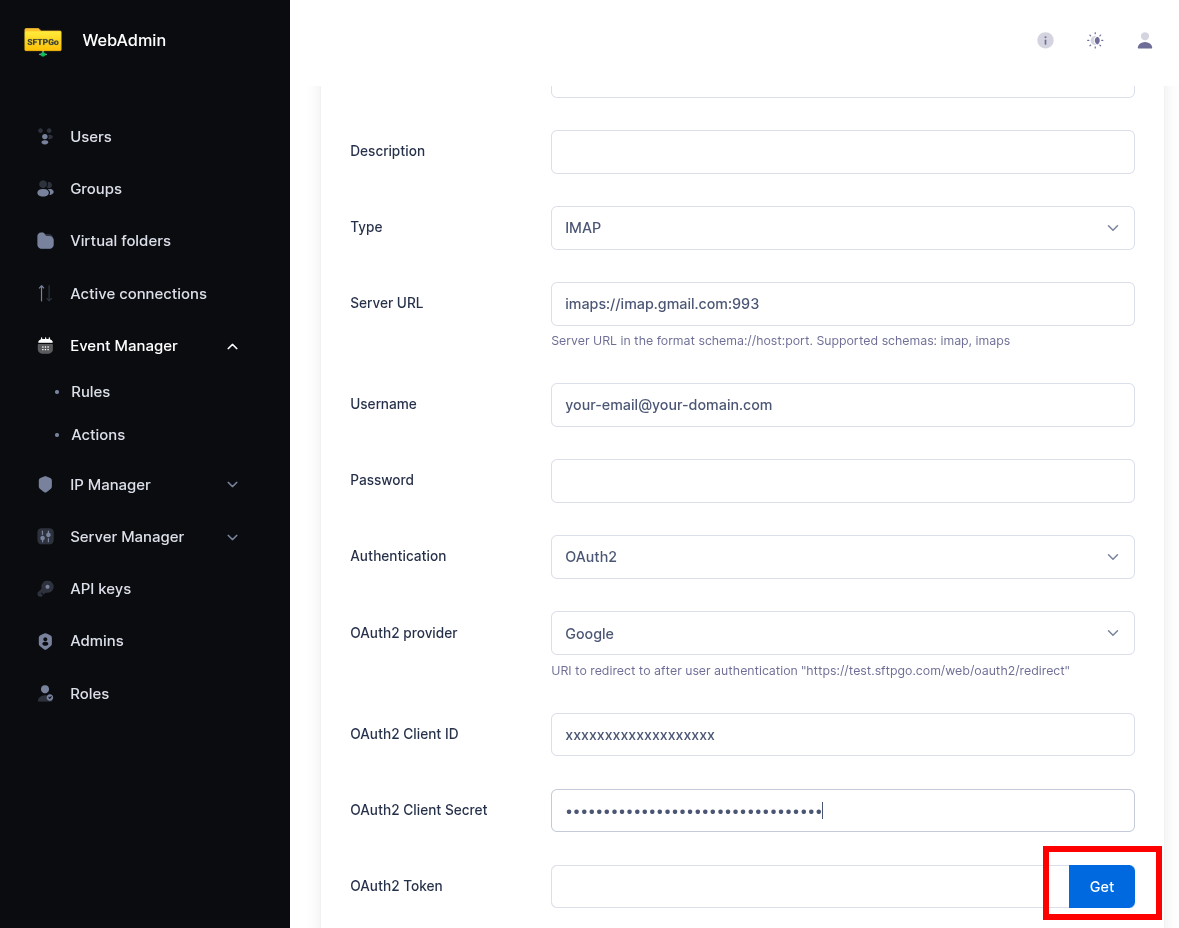

When creating or editing an IMAP action in the Event Manager, set the Auth type to OAuth2 and fill in the provider credentials.

Field	Value (Google)	Value (Microsoft)
Endpoint	imaps://imap.gmail.com:993	imaps://outlook.office365.com:993
Username	your-email@gmail.com	your-email@your-domain.com
Auth type	OAuth2	OAuth2
Provider	Google	Microsoft
Tenant	—	Your tenant ID
Client ID	Same as SMTP or a separate app	Same as SMTP or a separate app
Client Secret	The client secret	The client secret
Refresh Token	Obtained via the Get button	Obtained via the Get button

For Microsoft, SFTPGo automatically requests the IMAP.AccessAsUser.All scope instead of SMTP.Send. If you are using the same Azure app registration for both SMTP and IMAP, make sure to add both SMTP.Send and IMAP.AccessAsUser.All to the API permissions and grant admin consent.

Obtaining the Refresh Token

The IMAP action form includes a Get button next to the OAuth2 Token field. Fill in the provider, client ID, and client secret, then click Get. SFTPGo redirects to the provider's consent screen. After granting access, a page is displayed with the refresh token — copy it (without quotes) and paste it into the OAuth2 Token field in the action form.

Google Example: IMAP Action for Automatic Email Ingestion

A common use case is to automatically fetch email attachments and make them available as files in SFTPGo.

1. Create an IMAP action with OAuth2 authentication configured for Google.
2. Set the endpoint to imaps://imap.gmail.com:993.
3. Set the path template for where attachments should be saved (e.g., /inbound/{{.ObjectName}}).
4. Create a scheduled rule to run the IMAP action periodically (e.g., every 5 minutes).

Refresh Token Rotation

OAuth2 providers may rotate refresh tokens. SFTPGo handles this automatically:

• SMTP: When a new refresh token is received during token renewal, SFTPGo updates it in the database automatically.
• IMAP: When a new refresh token is received, SFTPGo updates the action configuration automatically.

No manual intervention is required after the initial setup.

Troubleshooting

• "Access denied" or "Insufficient scope" errors: Verify that the correct API permissions/scopes are configured in the provider's developer console and that admin consent has been granted (Microsoft).
• "Invalid redirect URI": The redirect URI in the provider must exactly match https://<your-sftpgo-url>/web/admin/oauth2/redirect. Check for trailing slashes and protocol (http vs https).
• Google "App not verified" warning: For external apps in testing mode, only test users added to the OAuth consent screen can authorize. Publish the app to remove this restriction.
• Microsoft tenant errors: Ensure the tenant ID matches your Azure AD directory. For personal Microsoft accounts, use consumers as the tenant.
• Token expiration: Client secrets in Azure AD expire. When they do, create a new secret and update it in SFTPGo. The refresh token itself is renewed automatically.
